Hantek Company

B-Shaped Ceiling

Product code: B30, B80, B130, B180
Specification: 80mm, 130mm, 180mm
Color: White (RAL)
Material: Aluminum 1100 – 3003 (H24, stainless steel)
Thickness: 0.6mm
Application: Office building, School, Hospital, commercial center, sports center, airport terminal, bank, hotel, telecommunication center, television center

Characteristics: Stability, sound absorption and noise reduction, flame retardant, no oxidation, high color fastness, environmental protection, economic efficiency in use....

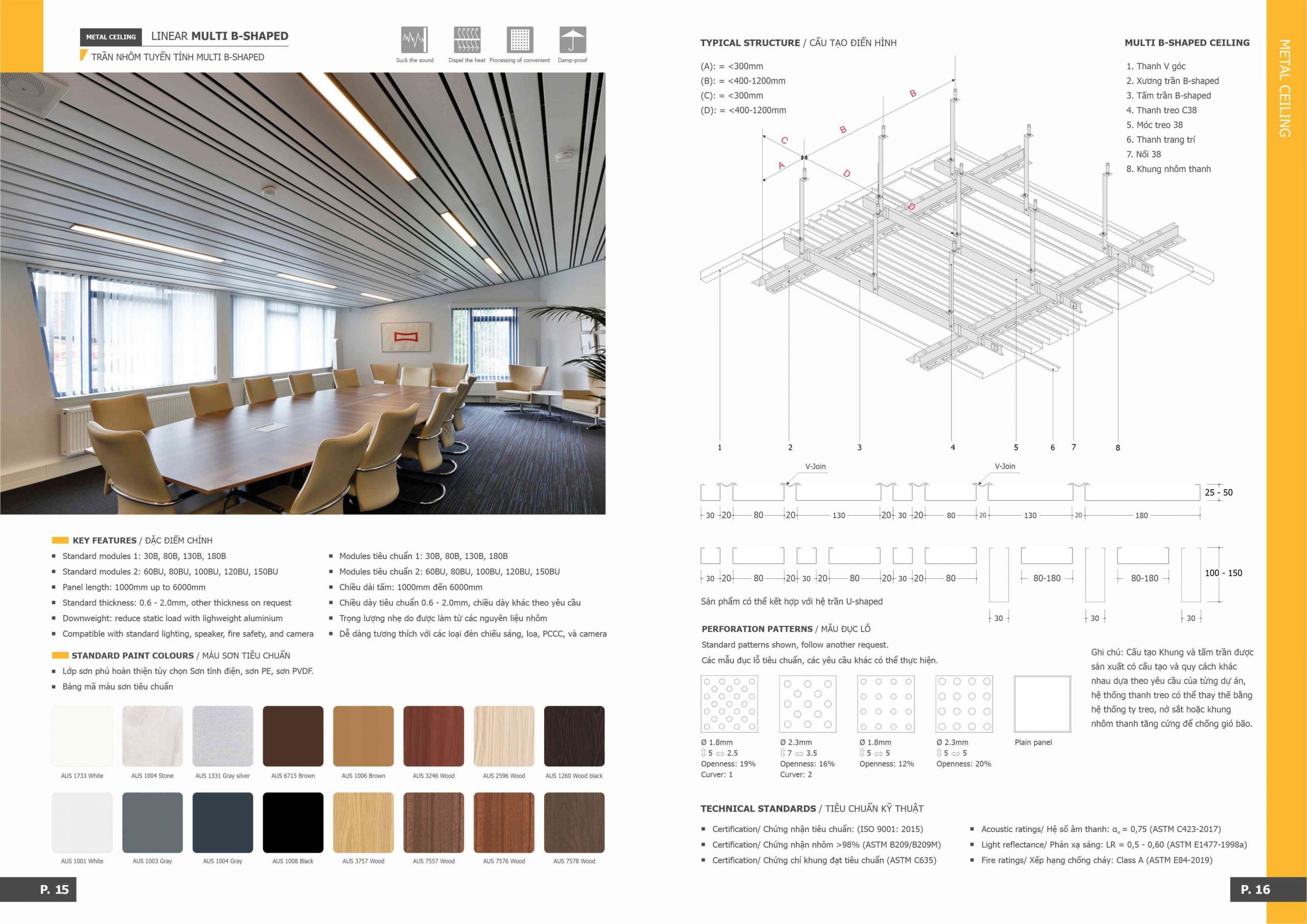

Description: The B-Shaped Hantek aluminum ceiling system consists of box-shaped panels with 4 different widths (from 30mm to 180mm) linked with the same unified skeleton, allowing the use of ceiling panels with widths and sizes. different heights in a ceiling area. Ceiling panels made of heat-painted aluminum are durable, lightweight and reusable. Sheet lengths are manufactured on request, up to 6000mm, which can be joined by a plate joint. Between the panels there is an open circuit 20mm wide, sealed by a V or U type sinker. The connecting rod is easily installed and disassembled by hand without the need for specialized equipment. Black bare bones, made from 0.5mm thick heat-coated steel or 0.6mm heat-coated aluminum, with eyelets that allow mounting of ceiling panels with a modulus of 50mm or its multiples. The standard bone rod is 3000mm long, which can be connected by a bone joint. Standard border braces are used as contours, ensuring aesthetics.
Warranty: 2 years

  • Cấu tạo sản phẩm
  • Kết quả thử nghiệm
