ALCOFLUX Aluminum flux panel

FIRE RETARDANT FLUX CORE COMPOSITE PANEL

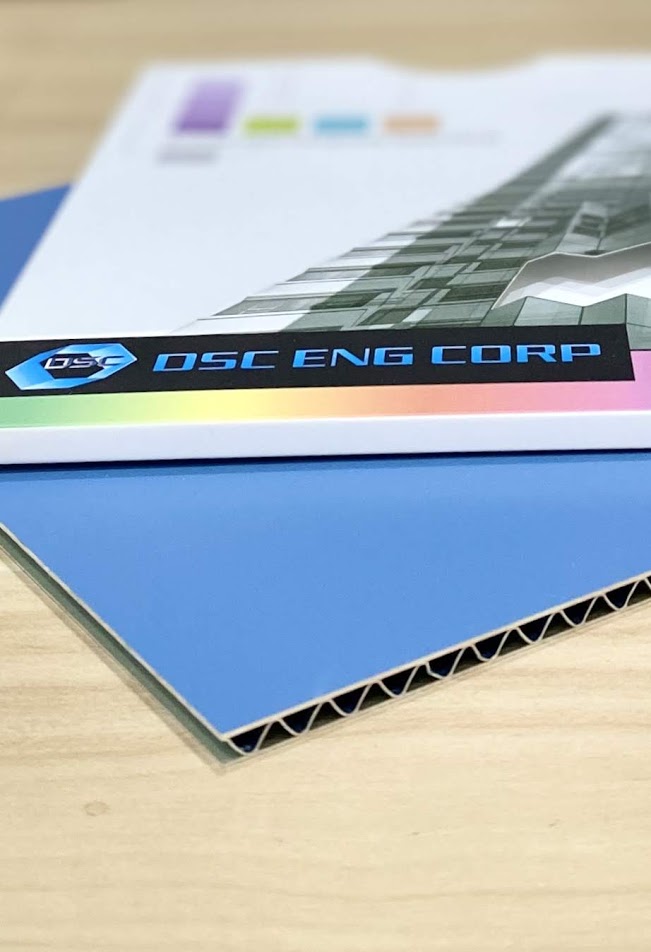

As a composite panel which continuously jointed aluminum or tin alloyd steel core formed fabricated as the shape of flux between aluminum or galvanized steel, coated with PVDF resin or stone pattern printed skin. ALCOFLUX panel must be a solution for the problem (flatness and strength) of single metal panel of ext. and int. panel and the 1st fire-proof composite panel overcome the weak point (fire-retardant) of existing Aluminum composite panel.

PRODUCT CHARACTERISTICS

Economical Efficiencies

Excellent Flatness

Non-Combustibility

Beautiful Outlook

Lightweight

Insulation



APPICATION OF ALCOFLUX

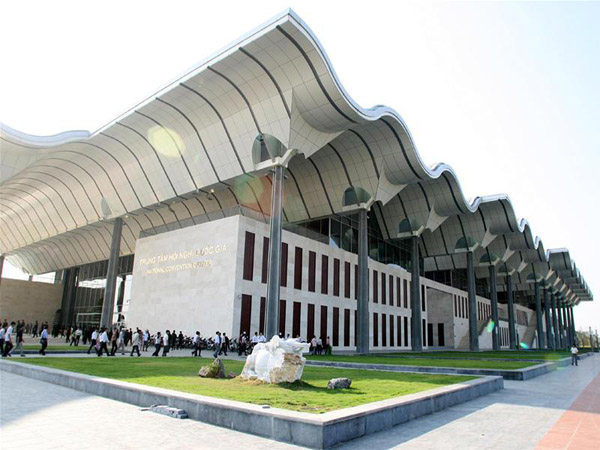

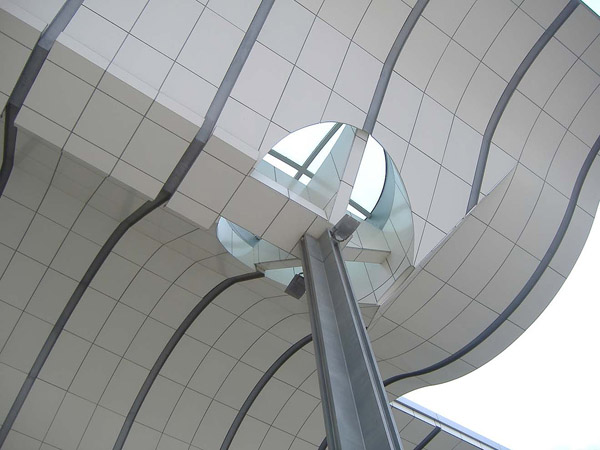

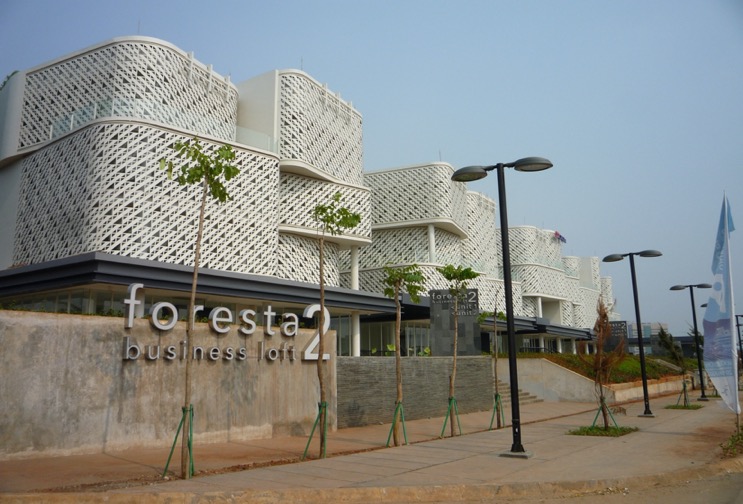

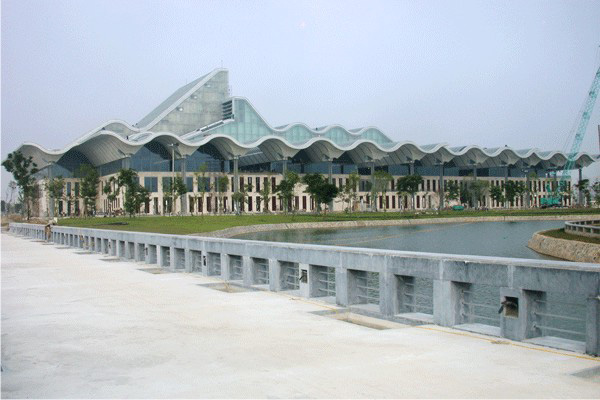

Exterior, Interior panel for New Building and Remodeling

Commercial Building, Apartment, Factory, Grand Market, Parking Tower

Building for required Insulation & Sound

Absorption Effects

Office and Inrerior partition

Subway Station & Column Cover

Tunnel Inner Wall Cladding

Exhibition Hall Display

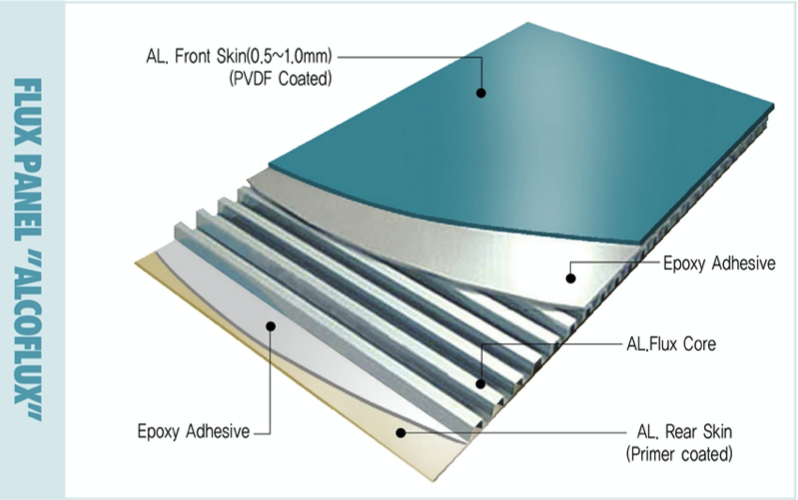

  • Cấu tạo sản phẩm

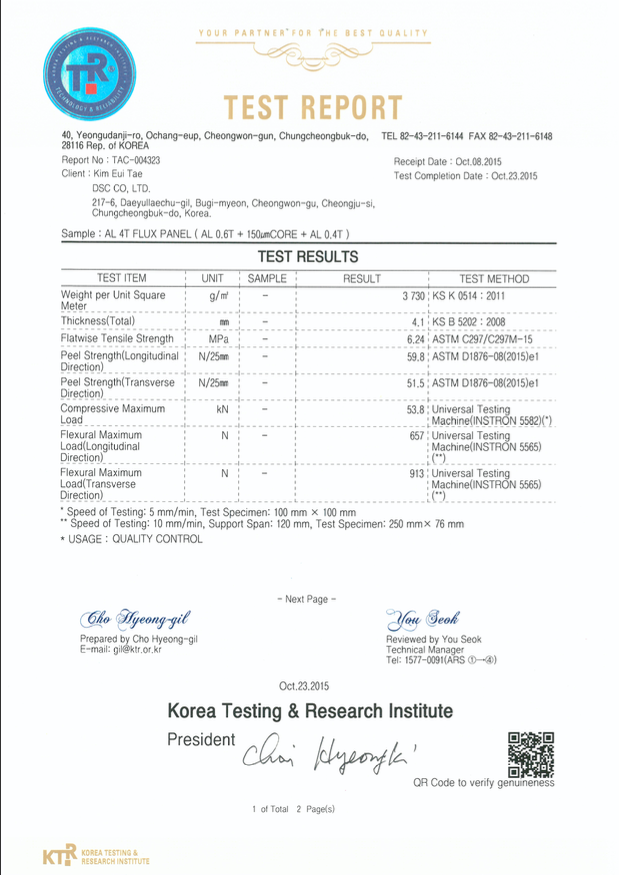

  • Kết quả thử nghiệm

GENERAL PROPERTY



   Classify 4mm Flux Panel
   Product structure (0.6+2.9+0.4)
   Product thickness(mm) 4.0±0.1
   Weight (kg/m2) 3.5±0.2
   Flat tensile strength (kg/cm2) Over 20
   Weatherability Over 80%
   Durability Delamination (kg/25mm) 5
   Compression strength (kg/cm2) 30
   Bend(kg/50mm) L:25
   Thermal conductivity (kcal/md 0C, 200C) W:50
0.33
   Flammability
Fire protection(Class 1)
 Standard size

  1,020mm x 2,440mm 1,020mm x 4,000mm
  1,250mm x 2,440mm 1,250mm x 4,000mm

 Standard thickness

  0.6+3+0.4 4mm (±0.1)
  0.8+4.8+0.4 6mm (±0.1)





CLICK COLOR

Arcadia Silver
Fashion Gray
Yellow White
Champagne
Jade
White Oak Blue
Wave Vintage Wood
Wood Dark Brown
Knotty Pine Wood
Zebra Wood
1.METALLIC COLOR
2. PREMIUM COLOR 3.SOLID COLOR 4.WOOD PATTERN
Log Wood Cherry Wood Vintage Wood Teak Wood Acacia Wood Knotty Pine White Oak Pine Wood Burl Wood Block Wood Golden Oak Naive Wood Dark Oak Zebra Wood Burl Wood Rough Wood Ash Wood
