ALCOMEX FR Aluminum composite panel

EXCELLENT EXTERIOR & INTERIOR FINISHING

ALCOMEX panels feature exceptional flatness making them the perfect compliment to the exterior and interior of any building, yet they are flexible enough to accommodate any specified curve or shape. And their special coild coating enables highly uniform painting for all types of applications.

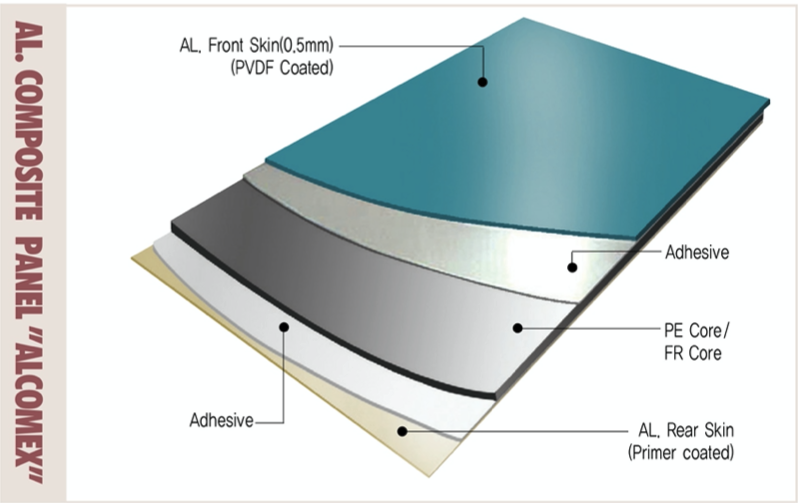

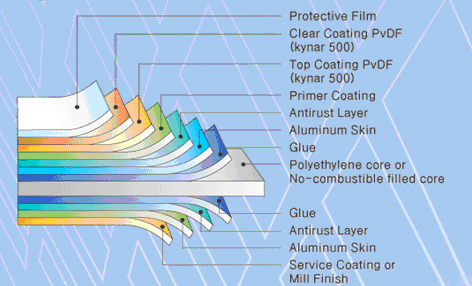

Aluminum (Zinc) composite material is high-performance product which is composed of 2 (two) cover sheets in 0.5mm thick Aluminum (Zinc) sheetspermanently bonded to each side of an extruded anti-toxic PE (FR) core material. With its light weight & superior workability, it’s being applied for ceiling, column, facade, sign board as well as interior & exterior wall cladding.

FEATURES

Lightweight and Rigidity

Flatness

Easy Workability

Impact Resistance

Corrosion Resistance and Weatherability

>>APPLICATIONS

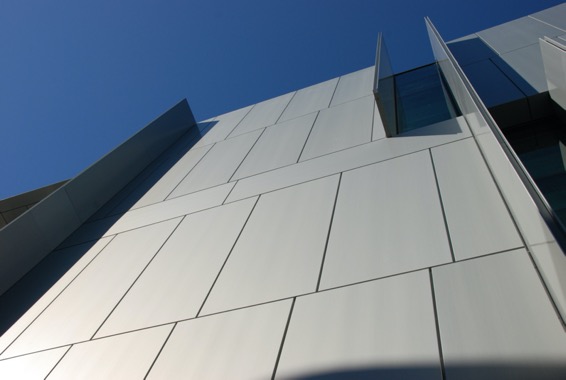

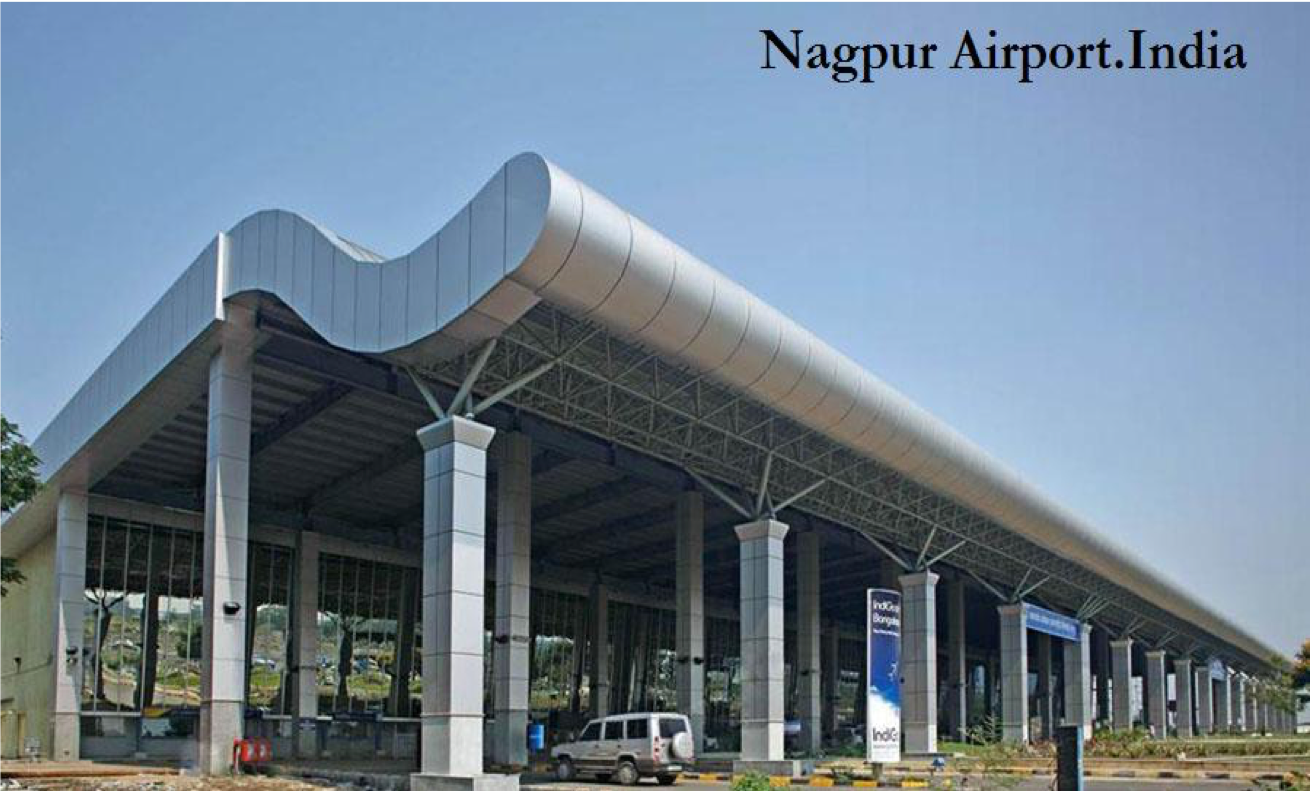

External & Internal Wall Cladding for Office & Commercial Buildings

Internal decoration

Advertising Sign Board

Column & Ceiling

  • Cấu tạo sản phẩm
  • Kết quả thử nghiệm

GENERAL PROPERTY

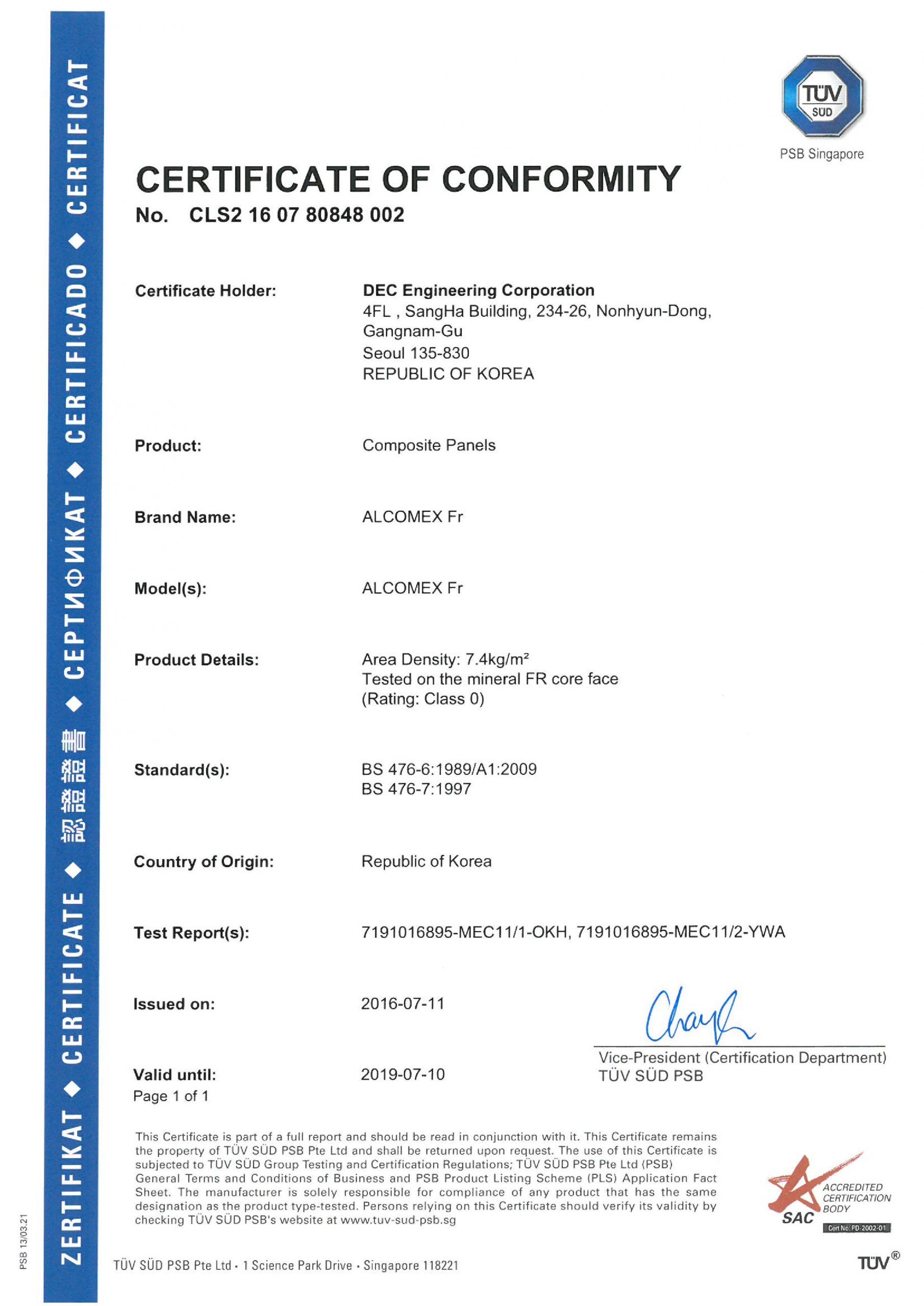

FIRE SAFETY



ITEM STANDARD PROPERTY REMARK
Surface Spread of Flame BS 476: Part 7 Class “ONE” ASTM E 162-76
Ignltability BS 476: Part 5 Class “P” ASTM E 108
Heat Evolved NATE Class “O” KS D 0254
Smoke Developed NATE Class “O” KS D 8335
Fire Propagation BS 476: Part 6 Class “0.0” ASTM E 84
Flame Retardancy KS F 2271 Normal ASTM E 84, 108

· BS: British Standard

· NATA: National Association of Test Authorities. Australia



STANDARD PANEL SIZE

1,020mm x 2,440mm 1,020mm x 4,000mm
1,250mm x 2,440mm 1,250mm x 4,000mm
1,575mm x 2,440mm 1,575mm x 4,000mm

Avail.thickness: 3mm/4mm/5mm/6mm



CLICK COLOR

Arcadia Silver
Fashion Gray
Yellow White
Champagne
Jade
White Oak Blue
Wave Vintage Wood
Wood Dark Brown
Knotty Pine Wood
Zebra Wood
1.METALLIC COLOR
2. PREMIUM COLOR 3.SOLID COLOR 4.WOOD PATTERN
Log Wood Cherry Wood Vintage Wood Teak Wood Acacia Wood Knotty Pine White Oak Pine Wood Burl Wood Block Wood Golden Oak Naive Wood Dark Oak Zebra Wood Burl Wood Rough Wood Ash Wood
